Horizon::System::SystemRoutineManager Class Reference

#include <System.hpp>

Classes
struct	runtime_map_data

Public Member Functions
	SystemRoutineManager (runtime_module_type module_type)
virtual void	register_ (runtime_module_type module_t, runtime_synchronization_method sync_t, std::shared_ptr< RuntimeContext > context)
virtual void	register_ (runtime_module_type module_t, runtime_synchronization_method sync_t, std::shared_ptr< RuntimeContextChain > context_chain)
virtual std::shared_ptr< const runtime_map_data >	find_runtime (std::string name)
virtual int	get_runtime_routine_count ()
runtime_module_type	get_module_type ()
void	push (std::shared_ptr< RuntimeContextChain > chain)
void	push (std::shared_ptr< RuntimeContext > seg)
std::shared_ptr< RuntimeContext >	pop ()
std::shared_ptr< RuntimeContextChain >	pop_chain ()
void	process_queue ()

Public Attributes
boost::lockfree::spsc_queue< std::shared_ptr< RuntimeContext >, boost::lockfree::capacity< 100 > >	_system_queue
boost::lockfree::spsc_queue< std::shared_ptr< RuntimeContextChain >, boost::lockfree::capacity< 100 > >	_system_queue_chain

Private Types
typedef std::map< std::string, runtime_map_data >	runtime_map

Private Attributes
runtime_map	_runtime_map
runtime_module_type	_module_type

Member Typedef Documentation

runtime_map

typedef std::map<std::string, runtime_map_data> Horizon::System::SystemRoutineManager::runtime_map

private

Constructor & Destructor Documentation

SystemRoutineManager()

Horizon::System::SystemRoutineManager::SystemRoutineManager ( runtime_module_type  module_type )

inline

    : _module_type(module_type)
    {
        if (_module_type < RUNTIME_MAIN || _module_type >= Horizon::System::RUNTIME_MODULE_MAX) {
            std::cerr << "SystemRoutineManager for module type (" << module_type << ") failed to start. Invalid module type." << std::endl;
        }
    }

References Horizon::System::RUNTIME_MODULE_MAX.

Member Function Documentation

find_runtime()

virtual std::shared_ptr< const runtime_map_data > Horizon::System::SystemRoutineManager::find_runtime ( std::string  name )

inlinevirtual

    {
        auto it = _runtime_map.find(name);
        return (it != _runtime_map.end()) ? std::make_shared<const runtime_map_data>(it->second) : nullptr;
    }

References _runtime_map.

get_module_type()

runtime_module_type Horizon::System::SystemRoutineManager::get_module_type ( )

inline

{ return _module_type; }

References _module_type.

Referenced by push().

Here is the caller graph for this function:

get_runtime_routine_count()

virtual int Horizon::System::SystemRoutineManager::get_runtime_routine_count ( )

inlinevirtual

    {
        return _runtime_map.size();
    }

References _runtime_map.

pop()

std::shared_ptr< RuntimeContext > Horizon::System::SystemRoutineManager::pop ( )

inline

    {
        if (_system_queue.empty())
            return nullptr;

        std::shared_ptr<RuntimeContext> ret;
        _system_queue.pop(ret);
        return ret;
    }

References _system_queue.

Referenced by process_queue().

Here is the caller graph for this function:

pop_chain()

std::shared_ptr< RuntimeContextChain > Horizon::System::SystemRoutineManager::pop_chain ( )

inline

    {
        if (_system_queue_chain.empty())
            return nullptr;

        std::shared_ptr<RuntimeContextChain> ret;
        _system_queue_chain.pop(ret);
        return ret;
    }

References _system_queue_chain.

Referenced by process_queue().

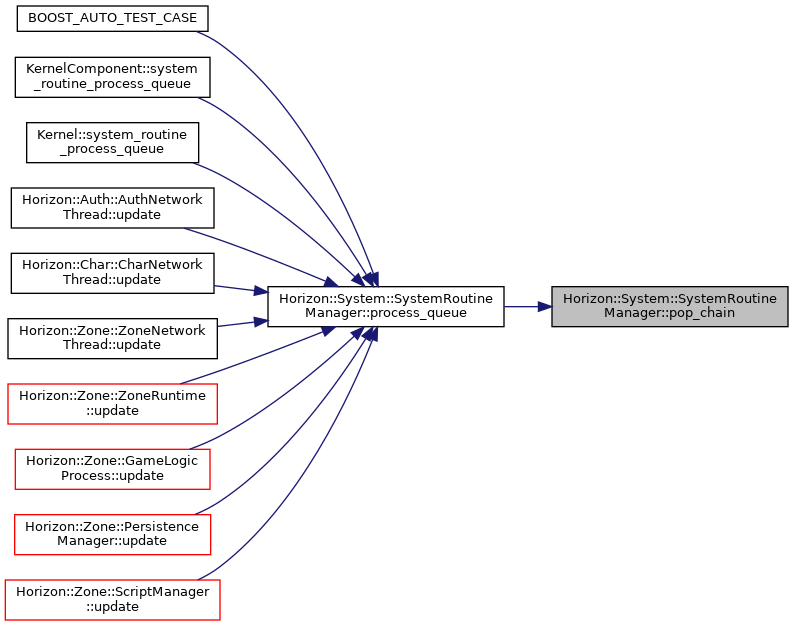

Here is the caller graph for this function:

process_queue()

void Horizon::System::SystemRoutineManager::process_queue ( )

inline

    {
        while(_system_queue.empty() == false) {
            std::shared_ptr<RuntimeContext> context = pop();
            if (context != nullptr)
                context->run();
        }

        while(_system_queue_chain.empty() == false) {
            std::shared_ptr<RuntimeContextChain> routine_chain = pop_chain();
            if (routine_chain != nullptr)
                routine_chain->get_queue_manager().process();
        }
        _system_queue.reset();
        _system_queue_chain.reset();
    }

References _system_queue, _system_queue_chain, pop(), and pop_chain().

Referenced by BOOST_AUTO_TEST_CASE(), KernelComponent::system_routine_process_queue(), Kernel::system_routine_process_queue(), Horizon::Auth::AuthNetworkThread::update(), Horizon::Char::CharNetworkThread::update(), Horizon::Zone::ZoneNetworkThread::update(), Horizon::Zone::ZoneRuntime::update(), Horizon::Zone::GameLogicProcess::update(), Horizon::Zone::PersistenceManager::update(), and Horizon::Zone::ScriptManager::update().

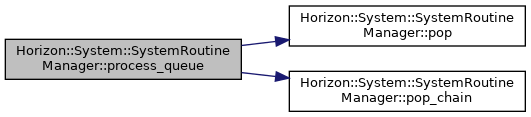

Here is the call graph for this function:

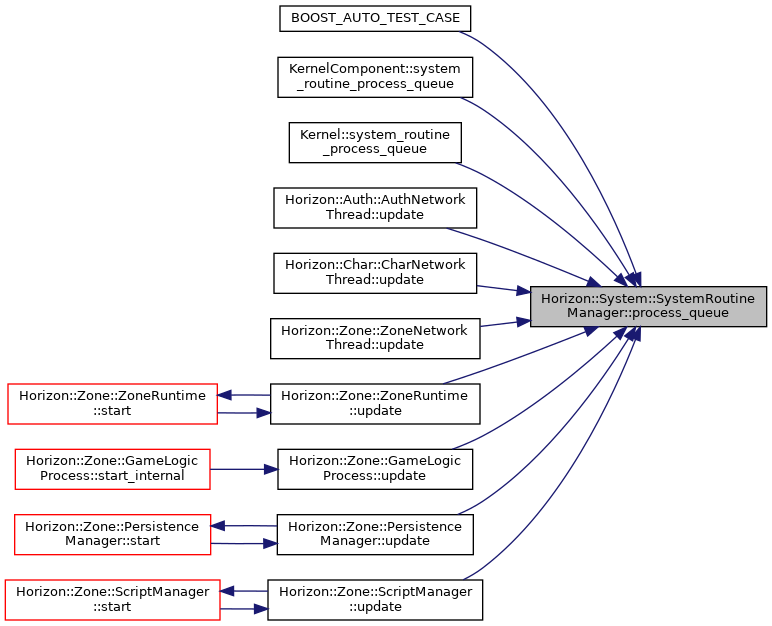

Here is the caller graph for this function:

push() [1/2]

void Horizon::System::SystemRoutineManager::push ( std::shared_ptr< RuntimeContext >  seg )

inline

                                                 {
        register_(get_module_type(), seg->get_synchronization_method(), seg);
        _system_queue.push(std::move(seg));
    }

References _system_queue, get_module_type(), and register_().

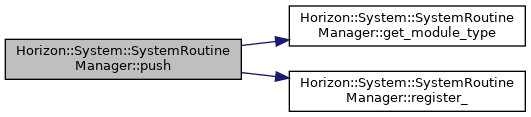

Here is the call graph for this function:

push() [2/2]

void Horizon::System::SystemRoutineManager::push ( std::shared_ptr< RuntimeContextChain >  chain )

inline

                                                        {
        register_(chain->get_module_type(), RUNTIME_SYNC_NONE, chain);
        _system_queue_chain.push(std::move(chain));
    }

References _system_queue_chain, register_(), and Horizon::System::RUNTIME_SYNC_NONE.

Referenced by BOOST_AUTO_TEST_CASE(), KernelComponent::system_routine_queue_push(), and Kernel::system_routine_queue_push().

Here is the call graph for this function:

Here is the caller graph for this function:

register_() [1/2]

virtual void Horizon::System::SystemRoutineManager::register_ ( runtime_module_type  module_t, runtime_synchronization_method  sync_t, std::shared_ptr< RuntimeContext >  context  )

inlinevirtual

    {
        runtime_map_data data = { module_t, sync_t, context, nullptr };
        _runtime_map.emplace(context->get_uuid_string(), data);
    }

References _runtime_map.

Referenced by push(), KernelComponent::system_routine_register(), and Kernel::system_routine_register().

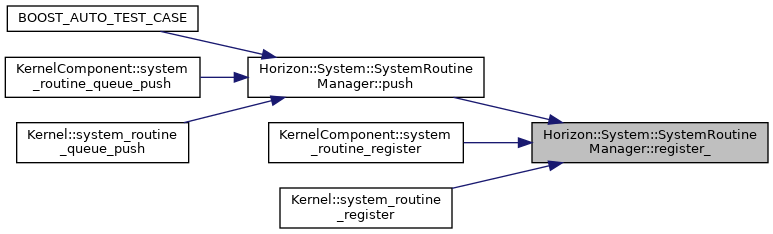

Here is the caller graph for this function:

register_() [2/2]

virtual void Horizon::System::SystemRoutineManager::register_ ( runtime_module_type  module_t, runtime_synchronization_method  sync_t, std::shared_ptr< RuntimeContextChain >  context_chain  )

inlinevirtual

    {
        runtime_map_data data = { module_t, sync_t, nullptr, context_chain };
        _runtime_map.emplace(context_chain->get_uuid_string(), data);
    }

References _runtime_map.

Member Data Documentation

_module_type

runtime_module_type Horizon::System::SystemRoutineManager::_module_type

private

Referenced by get_module_type().

_runtime_map

runtime_map Horizon::System::SystemRoutineManager::_runtime_map

private

Referenced by find_runtime(), get_runtime_routine_count(), and register_().

_system_queue

boost::lockfree::spsc_queue<std::shared_ptr<RuntimeContext>, boost::lockfree::capacity<100> > Horizon::System::SystemRoutineManager::_system_queue

Referenced by pop(), process_queue(), and push().

_system_queue_chain

boost::lockfree::spsc_queue<std::shared_ptr<RuntimeContextChain>, boost::lockfree::capacity<100> > Horizon::System::SystemRoutineManager::_system_queue_chain

Referenced by pop_chain(), process_queue(), and push().

---

The documentation for this class was generated from the following file:

• src/Server/Common/System.hpp
